SVX2-M
swipe for more gallery photos

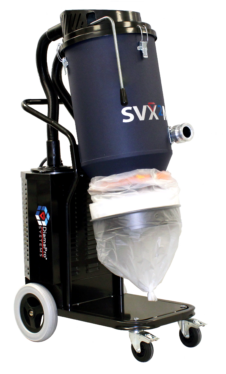

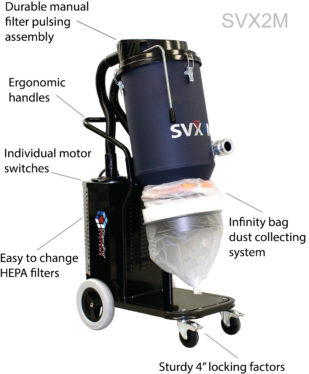

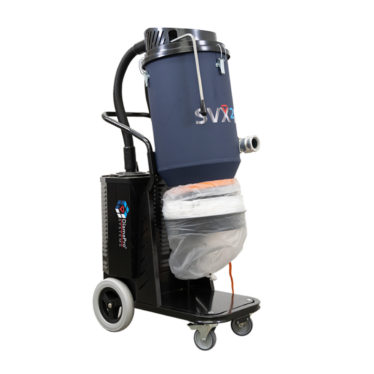

The SVX2M HEPA Filtered Dust Extractor from Diamapro Systems is 110V with manual filter cleaning. It features two stages of filter cleaning: a cylindrical pre-filter for separating larger particles, and a HEPA filter for each motor to remove the smallest dust particles. Filters are cleaned with a durable, metal hand-pulsing system. The dual 110v motors feature individual switches and deliver a theoretical 258CFM and 100 inches of water lift. The rugged design includes a heavy metal frame, ergonomic handles, and sturdy casters for easy handling. The SVX2M weighs 108 lbs. and is easy to load and unload at job sites.
Manual Features:
- Cylindrical pre-filter specifically designed to increase airflow and allow dust to slide off
- Durable metal jet pulsing system
- Rugged frame built for construction sites
- Strong casters with a sturdy attachment to the frame
- Individual switches for each motor
Comes with:
- Hose and Connections
- 25ft black hose
- 2 qty. 2.5” female camlock
- 2” soft cuff
- (additional hose sizes, camlocks, and soft cuffs available)
- Customizable Floor Tool
- 2" diameter wand and various options of brushes and squeegees
Specifications:
| ELECTRIC | SVX2M |
|---|---|
| CFM | 258 |
| Waterlift | 100 |
| Voltage | 110 Volt |
| Weight | 108 Lbs |
| Filter Cleaning | Manual |
| L X W X D | 28" X 18" X 55" |
