SVX3-M

Next Steps

DiamaPro 3 Motor, Manual Pulsing Dust Collector 110 Volt

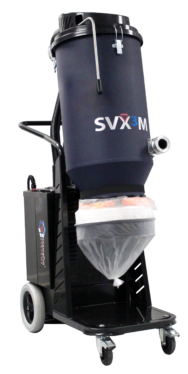

DiamaPro Systems’ SVX-3M HEPA Filtered Dust Extractor is a 110V vacuum with three large, commercial-grade motors that deliver a powerful 330 CFM of theoretical performance along with 80-inches of water lift, making it an ideal companion for any mid-sized planetary floor grinder. The SVX3-M has individual switches for each motor to prevent electrical burnouts. The SVX3M features manual filter cleaning, drop down dust collection, a cylindrical cartridge pre filter, and 3 HEPA filters to ensure excellent dust extraction.

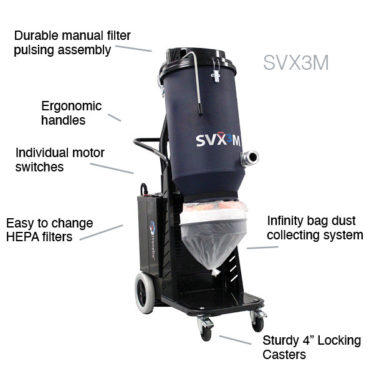

Manual Features:

  • Cylindrical pre-filter specifically designed to increase airflow and allow dust to slide off
  • Durable metal jet pulsing system
  • Rugged frame built for construction sites
  • Strong casters with a sturdy attachment to the frame

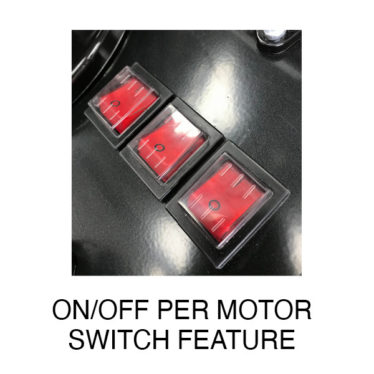

  • Individual switches for each motor

Comes with:

  • Hose and Connections
    • 25ft black hose
    • 2 qty. 2.5” female camlock
    • 2” soft cuff
    • (additional hose sizes, camlocks, and soft cuffs available)
  • Customizable Floor Tool
    • 2" diameter wand and various options of brushes and squeegees

Specifications:

    ELECTRIC SVX3M
    CFM 285
    Waterlift 80
    Voltage 110 Volts
    Weight 143 Lbs
    Filter Cleaning Manual
    L X W X D 35" X 19" X 61"
